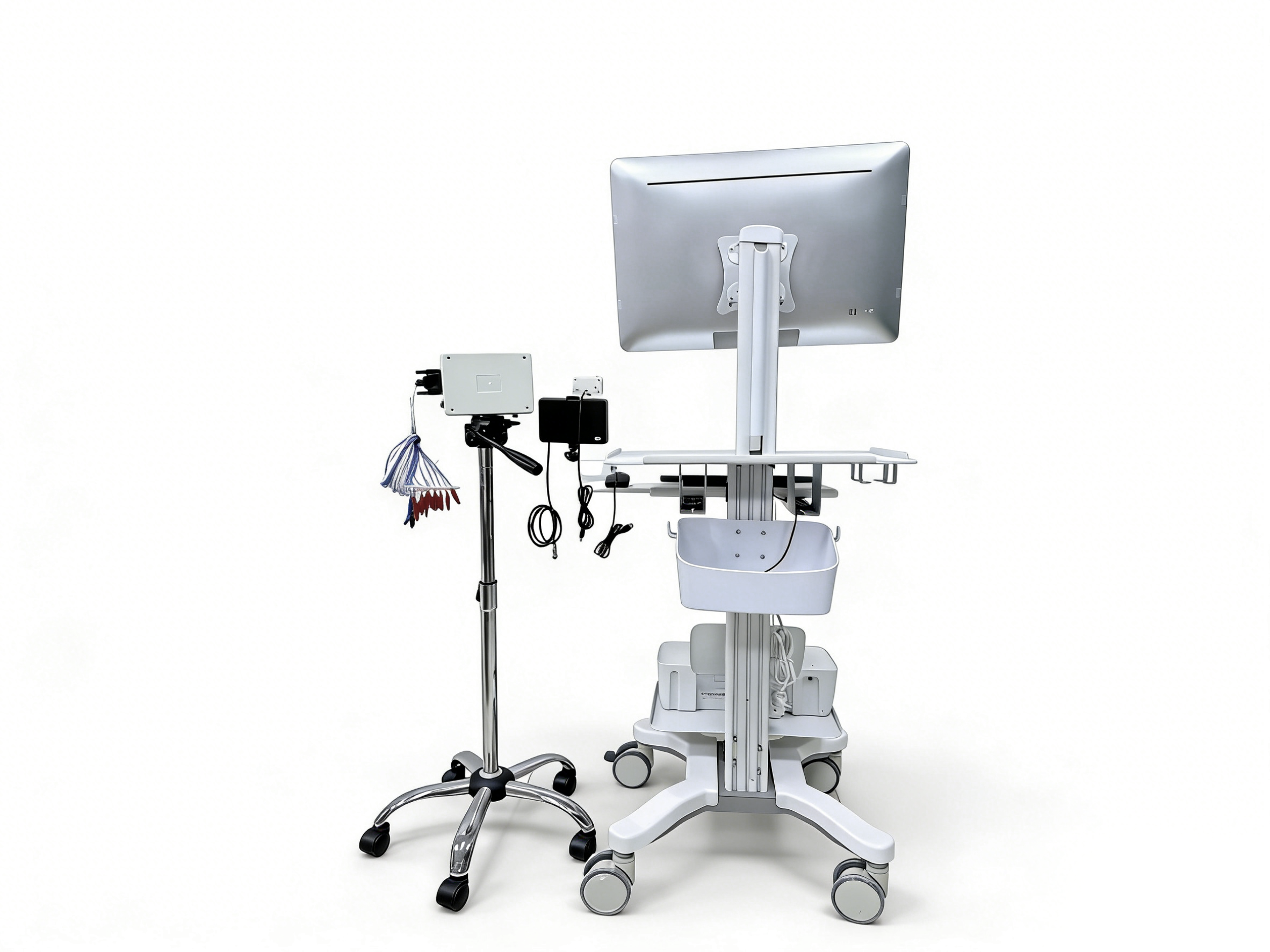

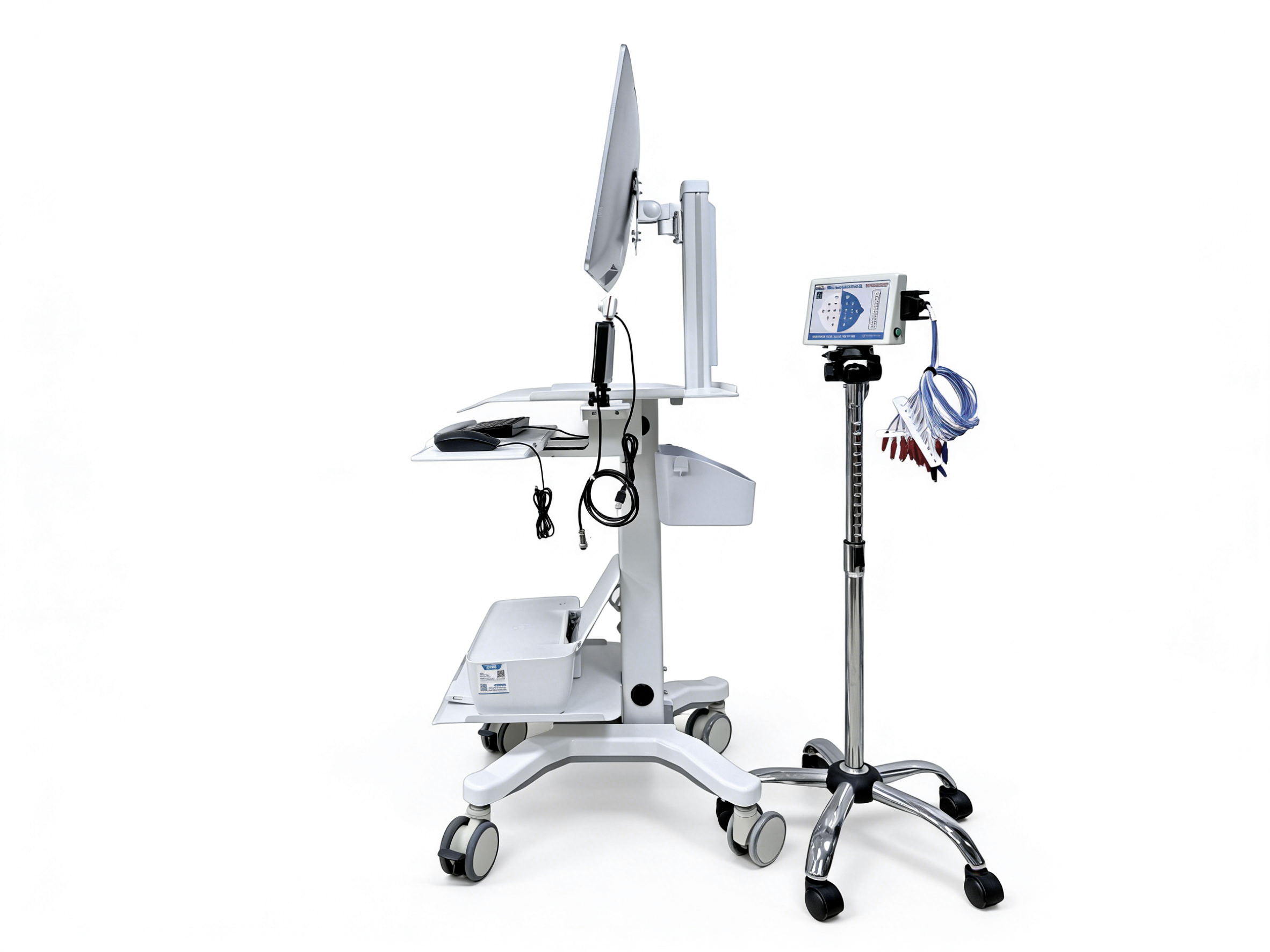

Digital EEG Topography Machine Kit 8200D

| Product Detail

（一）Product Overview

The EK-8200D is the basic trolley model of Digital EEG Topography, It possesses the most mature technology and has a wide range of applications.

A digital brain topography system is a multifunctional instrument that integrates electroencephalography (EEG), brain topography mapping, and brain monitoring, for clinical use in the acquisition, analysis, and management of brain signals.

（二）Principles：

Electroencephalogram (EEG) signals are collected from electrodes at different locations on the head. After filtering out interference signals, the signals are amplified and input into a computer's analog-to-digital converter (ADC) to convert the waveform signals into digital information stored in the computer's memory. Based on the voltage variables at different time phases, a Fast Fourier Transform (FFT) is performed to process the signals into power spectra in different frequency domains.

（三）Advantage：

1.It can generate EEGs with various unipolar, bipolar, and custom leads.

2.Real-time data acquisition and dynamic scrolling monitoring

3.Scrolling back and forth, arbitrarily capturing data for brain topography analysis across various frequency bands.

4.Case database classification management, multiple event descriptions

（四）Application：

1. Electroencephalography (EEG) is currently the most ideal and reliable diagnostic tool for functional disorders, such as: primary epilepsy, psychiatric disorders, concussion, and post-traumatic brain injury syndrome.

2.It can assist in the diagnosis of organic diseases, even in the early stages when brain tissue only shows functional changes, thus enabling ultra-early diagnosis, such as in the diagnosis of brain tumors and the differential diagnosis between malignant and benign tumors.

3.It can also assist in the evaluation of disease treatment and prognosis.

4.It can assist in the diagnosis of ophthalmic and otolaryngological diseases; visual evoked potential topography and auditory evoked potential topography can aid in the diagnosis of certain ophthalmic and otolaryngological diseases.

5.Other applications: EEG also has wide-ranging uses in anesthesiology, rehabilitation medicine, and basic medical research.

| Characteristics

1.EK-8200D Digital EEG 24 inches Color LCD monitor

2.Two sets of EEG caps were configured (Different sizes)

3.EK-8200D Intelligent Analysis System High-end computers

4.Medical-grade camera system for simultaneous video image capture, acquisition, and playback.

5.Various styles of connecting wires

6.Medical silver electrode clips

7.USB interface amplifier (Includes support)

8.Video surveillance and flash generator

9.Multi-functional trolley and HP color inkjet printer

| Configuration

1.High-end brand all-in-one computer with 24-hour ultra-bright LCD screen

2.Two sets of EEG caps were configured (Different sizes)

3.EK-8200D Intelligent Analysis System

4.Medical-grade camera system for simultaneous video image capture, acquisition, and playback.

5.Various styles of connecting wires

6.Medical silver electrode clips

7.Imported assembled precision amplifiers provide more accurate digital signals (Includes support)

8.Video surveillance and flash generator

9.ABS injection molded high-end luxury stroller

10.HP Color Laser Printer

| Main parameters

1. 16-lead real-time acquisition, dynamic scrolling monitoring

2. Scrolling playback, arbitrary data capture and analysis of brain topography maps at various frequency bands, capable of representing absolute and relative topographic maps: histograms, and dynamic waveform topographic maps

3. Case database classification management: multiple event descriptions

4. Digital EEG, topographic mapping, and EEG monitoring integrated into one system

5. Hardware switching, waveform distortion-free

6. Electrodes and cables use highly shielded materials to reduce electromagnetic interference and signal attenuation, ensuring stable EEG signal transmission; robust interface design avoids poor contact caused by frequent plugging and unplugging, simultaneously improving anti-interference performance and sensitivity

7. Equipped with a deluxe trolley, high-end and elegant appearance
